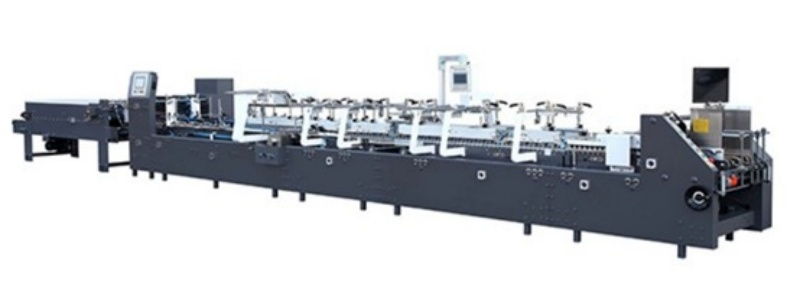

Automatic folder gluing machine

The sixth generation modular multifunctional Automatic Box Making Paper Box Folding Gluing Machine (folder gluer), CE certificated.

Multiple national patents, the performance of the six generation machine leads the industry.

Modular structure, different functions can be combined according to customer needs, and functions can be upgraded after purchase.

Multi-motor transmission has strong power, fast speed and long life.

Synchronous belt transmission is high speed and low noise.

The conveyor belt is powered both up and down, without curling.

The new curved arm has a unique shape and beautiful appearance.

Four-hexagonal device position is reserved for upgrading at any time.

The integrated electrical control box is hidden under the conveyor to save space.

AS-S Technical Parameters

MODEL	650	800	1100
Paper material	Cardboard 210-800gsm,  E/N/F Flute
Max. speed	400m/min
Max .thickness of folded box	12mm
Way of folding	Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180°
Power supply	3P 380V 50HZ
Blank width	650mm	800mm	1100mm
Length x Width x Height	13.5×1.5×1.45m	13.5×1.65×1.45m	13.5×2.0x1.45m
Net Weight	5.5T	6.5T	7.5T
Total power	16kw	16kw	17kw

*All parameters are subjected to our final confirmation before order.

Work Flow
