Automatic Box Making Machine

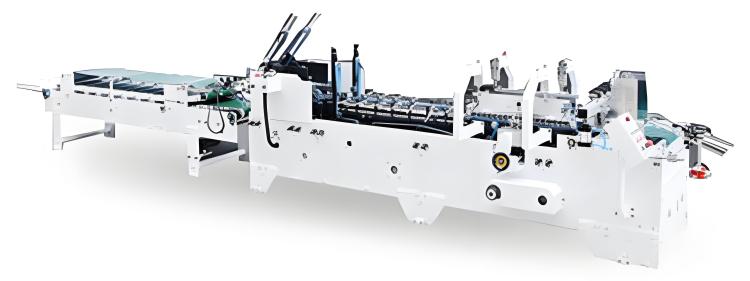

A Automatic folder gluer

Automatic Box Making Machine

Samples of Automatic Box Making Machine
Product Description
Name | A Automatic Folder Gluer | |
model | 650A | 780A |
Paper Material | Cardboard210-800g | |
Max. Liner speed | Max. 220 meter/minute | |
Feeding way | Automatically and continuously feeding | |
Way of folding | Fold 1 and fold 3 are 180°, | |
Glue Material | Water-base cold glue | |
Electric power | 2.5kw 380v | 2.5kw 380v |
Weight | 1.6T | 1.8T |
Over dimension | 6.5×1.3×1.45m | 6.5×1.45×1.45m |
Packaging dimensions | 3.65*1.3*1.45m | 3.65*1.45*1.45m |
2.85*0.85*0.9m | 2.85*0.95*0.9m | |
Container | 20GP | 20GP |
Net weight | 1050kg | 1220kg |
350kg | 470kg | |
Gross weight | 1250kg | 1420kg |
420kg | 530kg |
Feature introduction
![]() | Feeding5pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feedingContinuously Variable Speeder to ensure feeding internal and stable transmissionOne-touch Pneumatic knife, easy for the adjustment of feeding belts |
FoldingLengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection. | ![]() |
![]() | Full pressing2-board structureTwo modes for pressing belt speeding:Auto: set distance between boxes, pressing belt speed is the same as the machine, belt removes while sensor detect it.Manual: pressing belt conveys in a fixed speed and machine speed will not put any effect on it.With counting device to count the finished boxes to match with boxes regulating, easy to count and pack. |
TransmissionEquipped with feeding paper inspection device.Equipped with impacting device to press the paper after accounting and make it easy to pack paper. | ![]() |
Samples
Carton type and size: | ![]() | ||
Model | 650Type | 780Type | |
A | 75-650 | 75-780 | |
B | 60-650 | 60-780 | |
C(Min) | 35 | 35 |
All parameters are subjected to our final confirmation before order.
Work Flow
